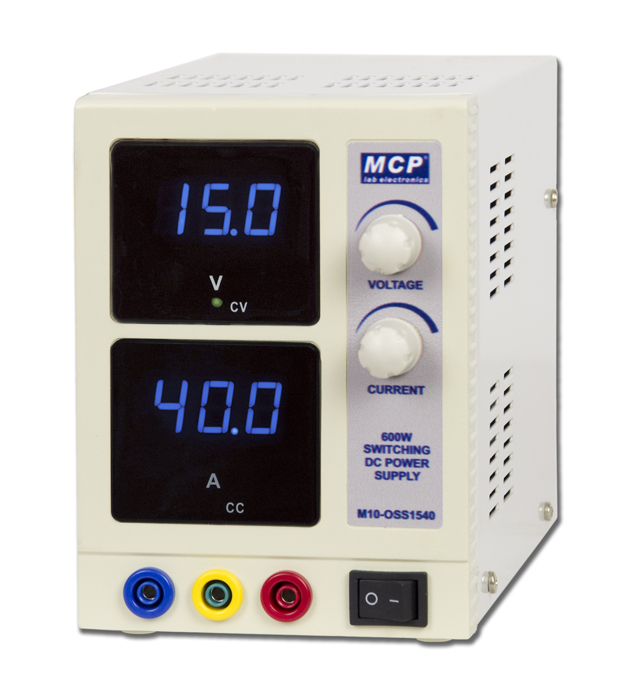

M10-OSS1540

SWITCHING POWER SUPPLY

Features

. 600W power output
. Constant voltage and constant current
. Temperature control fan and over heat protection

Specifications

Output voltage: 0~15V
Output current: 0~40A
Line regulation: CV 2×10^-3+3mV CC 2×10^-3+3mA
Load regulation: CV 1×10^-3+5mV CC 2×10^-3+5mA
Display accuracy: Voltmeter±(1.0%Rdg+2digits) Ammeter ±(1.0%Rdg+2digits)
Input voltage: 110~127VAC±10% 60Hz or 220~240±10% 50Hz
Dimensions(W×H×D):105×160×235mm
Weight: 2.5kg
