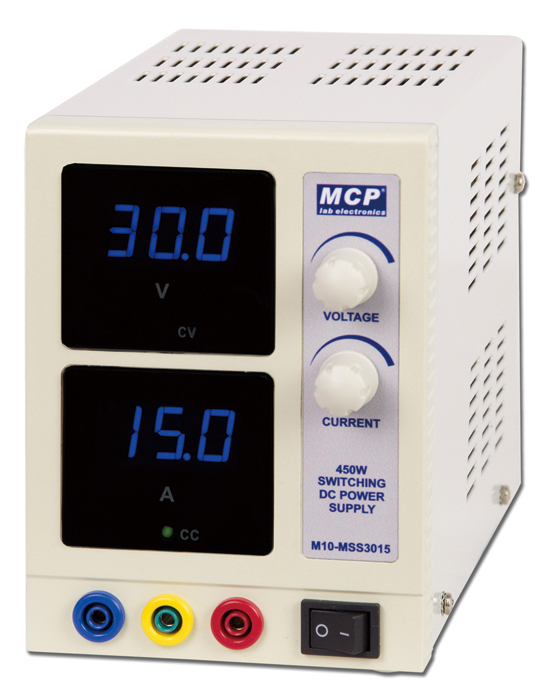

M10-MSS SERIES
SWITCHING POWER SUPPLY

Features

. 450W power output
. Constant voltage and constant current
. Temperature control fan and over heat protection

Specifications

Line regulation: CV 6×10^-4+3mV CC 2×10-3+3mA
Load regulation: CV 2×10^-3+5mV CC 2×10-3+3mA
Ripple & noise: CV 15mVrms CC 15mArms
Display accuracy: Voltmeter±(1.0%Rdg+2digits) Ammeter ±(1.0%Rdg+2digits)
Input voltage: 110~127VAC±10% 60Hz or 220~240±10% 50Hz
