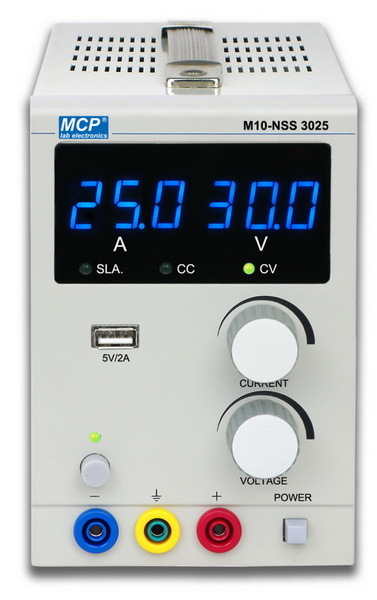

M10-NSS SERIES

PROGRAMMABLE SWITCHING POWER SUPPLY

Video on Youtube

Features

.750W power output
.Constant voltage and constant current
.More units parallel operation
.Remote programmable via USB to computer
.10 programmable sets of voltage and current
.Protection voltage and current settable.
.Rotary encoder knob with definitive action of fine and coarse   tuning
.USB charger 5V/2A

Specifications

.Line Regulation:   CV 1×10^-4+2mV CC 1×10^-4+1mA
.Load Regulation: CV 1×10^-4+4mV CC 1×10^-3+3mA (I<10A)
                             CV 2×10^-4+4mV CC 2×10^-3+3mA (I≥10A)
.Ripple & Noise (RMS): CV 10mVrms, CC 10mArms
.Switching frequency: 60kHz
.Display Accuracy:   Voltmeter ±(0.2%Rdg+2digits)   Ampmeter±(0.2%Rdg+5digits)
.Input Voltage: 110VAC±20%, 220VAC±20%, 50Hz/60Hz,   Switchable
.Full load input current: 4.35 (at 220VAC input)/8.7 (at 110VAC   input)
.Efficiency: 80%
.Protections: over voltage, over current, over heat
.Tracking over voltage protection: set voltage +1.5V
:Tracking over current protection: set current +1.5A
.USB output: 5V/2A
.Dimensions: 100(W)×160(H)×320(D)mm
.Weight: 3kg
