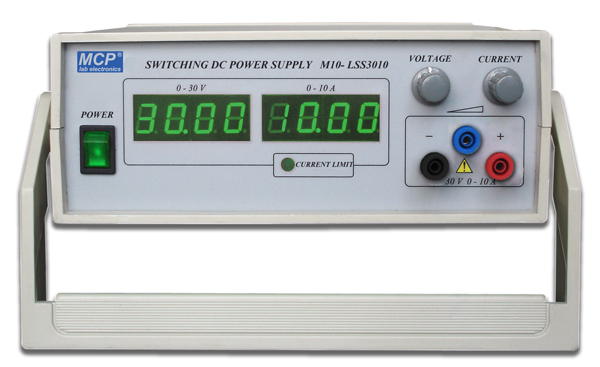

M10-LSS SERIES
SWITCHING POWER SUPPLY

Features

.Two LED digital panel meters

.Constant voltage and constant current operation.

.Efficiency up to 98%

.High power density, small and light

.Voltage and current control by 10-turn potentiometer, resolution 0.03%

.Protected against all overload and short circuit conditions

.Isolated analog and digital programming interface option

Specifications

.Line Regulation: CV10mV CC4mA

.Load Regulation: CV3mV CC3mA

.Ripple & Noise: CV3mVrms, 40mVp-p(20Hz~20MHz) CC3mArms

.Display Accuracy: Voltmeter ±(0.2%Rdg+2 digits)   Ampmeter ±(0.2%Rdg+5digits)

.Input Voltage: 110~127VAC±10%/60Hz, 220~240VAC±10%/50Hz, Switchable

.Dimensions: 230(W)x90(H)x260(D)mm

.Weight: 2.2kg
