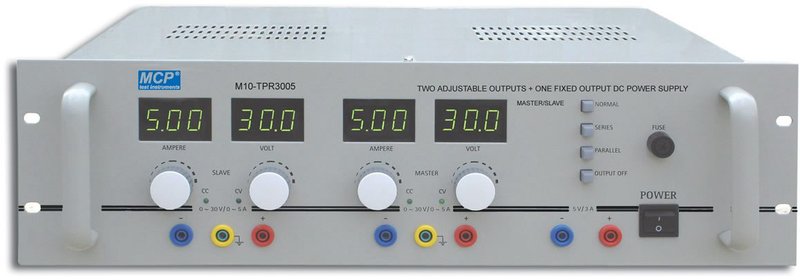

M10-TPR SERIES
19 INCH ADJUSTABLE DC POWER SUPPLY

Features

.Constant voltage and constant current

.Series and parallel tracking function

.19 inch pack mount (3U) and benchtop

.Output from front panel and rear panel

.Output Enable/Disable Control

Specifications

.Line Regulation: CV1x10^-4+3mV CC2x10^-3+3mA Fixed output 10mV

.Load Regulation: CV1x10^-4+2mV CC2x10^-3+3mA(l≤3A) CV1x10^-4+5mV
                             CC2x10^-3+5mA(l>3A) CV2x10^-4+5mV CC2x10^-3+5mA(l≥10A)
                             Fixed output 10mV

.Ripple & Noise: CV0.5mV rms CC3mA rms(1≤3A) CV1.0mV rms CC3mA rms(1>3A)
                           CV3.0mV rms CC9mArms(l≥5A)
                           Fixed output 10mV

.Fixed Output Accurary: 2.5%

.Display Accuracy: Voltmeter±(0.2%Rdg+2digits),   Ampmeter±(1.0%Rdg+2digits)

.Input Voltage: 110~127VAC±10% 220~240VAC±10% Switchable
