M10-SPM SERIES
M10-SPM SERIES
- Products Details

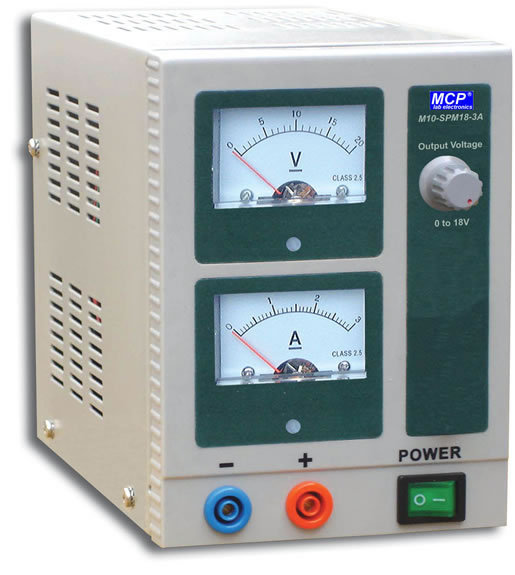

| M10-SPM SERIES MINI SINGLE OUTPUT ADJUSTABLE DC POWER SUPLLY | |
Features .Compact structure .Low ripple and noise .Plastic panel Specifications .Line Regulation: CV≤1X10-4+3mV CC≤2X10-3+3mA .Load Regulation: CV≤1X10-4+2mV CC≤2X10-3+3mA .Ripple & Noise: CV≤0.5mV rms CC≤3mA rms .Display Accuracy: Voltmeter±(0.2%Rdg+2digits), ±2.5% Full Scale Ampmeter±(1.0%Rdg+2digits), ±2.5% Full Scale .Input voltage: 110~127VAC±10%/60Hz, 220~240VAC±10%/50Hz, Switchable | |
M10-SPM A Class | |
Features .Constant voltage .Display with analog meter | |
| Model | Voltage | Max Current | Dimensions (WxHxD) | Weight (kg) |
|---|---|---|---|---|
| M10-SPM30-1A | 0~30V | 1A | 108x154x240mm | 2 |
| M10-SPM30-2A | 0~30V | 2A | 108x154x240mm | 4.5 |
| M10-SPM18-3A | 0~18V | 3A | 108x154x240mm | 3 |
M10-SPM E Class |
Features .Constant voltage(with fine adjustable knob) and constant current .Display with LED |
| Model | Voltage | Max Current | Dimensions (WxHxD) | Weight (kg) |
|---|---|---|---|---|
| M10-SPM30-1E | 0~30V | 1A | 108x154x240mm | 2 |
| M10-SPM30-2E | 0~30V | 2A | 108x154x240mm | 4.5 |
| M10-SPM18-3E | 0~18V | 3A | 108x154x240mm | 3 |
M10-SPM C Class |
Features .Constant voltage and constant current .Display with LED |
| Model | Voltage | Max Current | Dimensions (WxHxD) | Weight (kg) |
|---|---|---|---|---|
| M10-SPM30-1C | 0~30V | 1A | 108x154x240mm | 2 |
| M10-SPM30-2C | 0~30V | 2A | 108x154x240mm | 4.5 |
| M10-SPM18-3C | 0~18V | 3A | 108x154x240mm | 3 |
