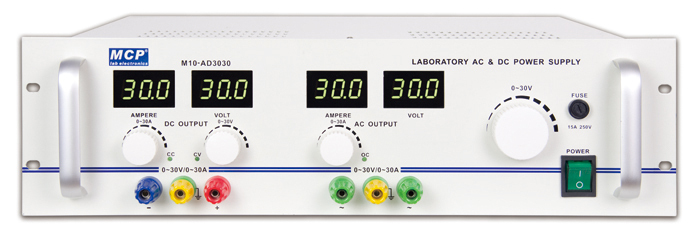

M10-AD3030
AC & DC POWER SUPPLY

Features
.AC and DC combined power supply
.DC constant voltage and constant current
.AC output over load protection
.19-inch rack mount (3U) and benchtop
.Output from front panel and rear panel
.Temperature controlled fan

Specifications

DC output
.Line Regulation: CV 6×10-4+3mV CC 2×10-3+3mA
.Load Regulation: CV 3×10-3+5mV CC 2×10-3+5mA
.Ripple & Noise:   CV 50mVrms CC 50mArms
.Display Accuracy: Voltmeter ±(1.0%Rdg+2digits) Ampmeter ±(1.0%Rdg+2digits)

AC output
.Display Accuracy: Voltmeter ±(1.0%Rdg+2digits) Ampmeter ±(1.0%Rdg+2digits)
.Input Voltage: 110~127VAC±10%, 220~240VAC±10% Switchable
.Dimensions:   19″3U
.Weight: 22kg
