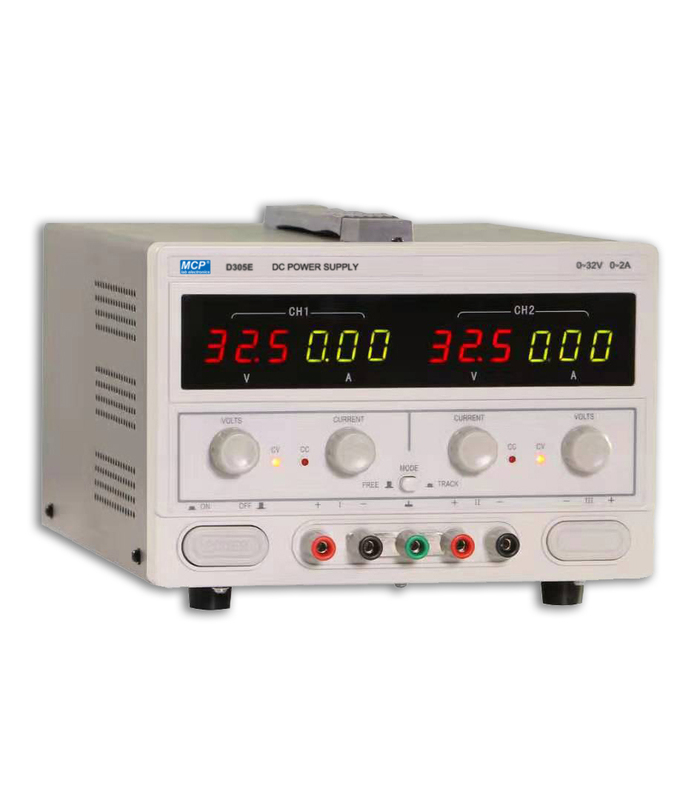

D305E DUAL OUTPUT DC POWER SUPPLY

Features

.Constant voltage and constant current

.Economic design for educationl

Specifications

.Output Voltage: 0~30V × 2

.Output Current: 0~5A × 2

.Load regulation: CV: ≤ 1 × 10^-4+2mV   CC: ≤ 20mA

.Ripple and noise: CV: ≤ 1mvrms   CC: ≤ 1marms

.Adjustable resolution: CV: 20mV (typical)   CC: 50mV (typical)

.Tracking error: ≤ 5 × 10^-3+2mV

.Input Voltage: 110~127VAC ± 10% or 220~240 ± 10%

.Weight: 7kgs
