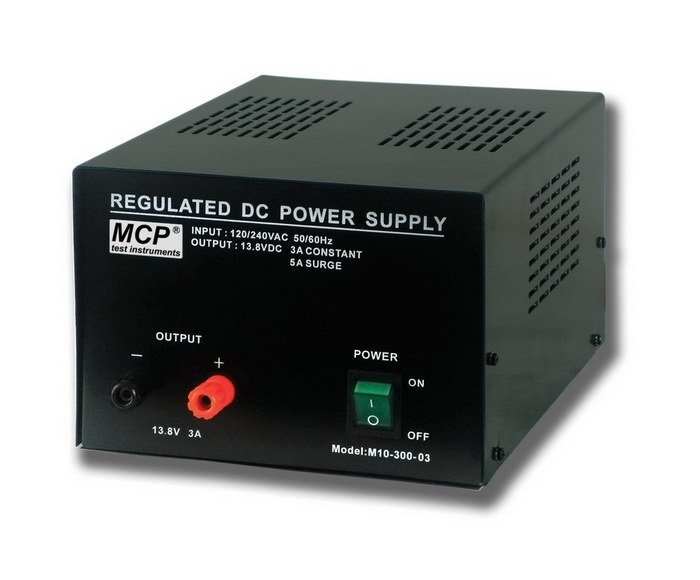

| M10-300 13.8V SERIES DC POWER SUPPLY |
Features .Economical design with 30 min full load continuous operation .Short-circuit protection & over current protection .Output current meter available .Output voltage meter and cigar lighter are optional Specifications .Line Regulation: 3% .Load Regulation: 5% .Input Voltage: 110~127VAC±10% 220~240VAC±10% |
| Model | Output Current | Surge Current | Ripple Voltage | Protection | Vmeter |
|---|---|---|---|---|---|
| M10-200-02 | 2A(12V) | 4A | 60mV | Short Circuit & Over Current | |
| M10-240-03 | 3A(24V) | 5A | 60mV | √ | |
| M10-300-03 | 3A | 5A | 60mV | √ | |
| M10-300-06 | 6A | 8A | 60mV | √ | |
| M10-300-10 | 10A | 12A | 100mV | √ | |
| M10-300-15 | 15A | 17A | 100mV | √ | |
| M10-300-20 | 20A | 22A | 120mV | √ | |
| M10-300-25 | 25A | 28A | 120mV | √ | |
| M10-300-30 | 30A | 32A | 140mV | √ | |
| M10-300-50 | 50A | 53A | 160mV | √ |
| Model | Options Ameter | Ciger Lighter | Dimensions (WxHxD) | Weight (kg) |
|---|---|---|---|---|
| M10-200-02 | √ | √ | 105x77x190mm | 1.8 |
| M10-240-03 | √ | √ | 105x77x190mm | 1.8 |
| M10-300-03 | √ | √ | 105x77x190mm | 1.8 |
| M10-300-06 | √ | √ | 144x100x230mm | 3 |
| M10-300-10 | √ | √ | 144x100x230mm | 4 |
| M10-300-15 | √ | √ | 200x115x280mm | 5.5 |
| M10-300-20 | √ | √ | 200x115x280mm | 6 |
| M10-300-25 | √ | √ | 200x115x280mm | 6.5 |
| M10-300-30 | √ | √ | 200x144x315mm | 8 |
| M10-300-50 | √ | √ | 300x160x340mm | 8 |
