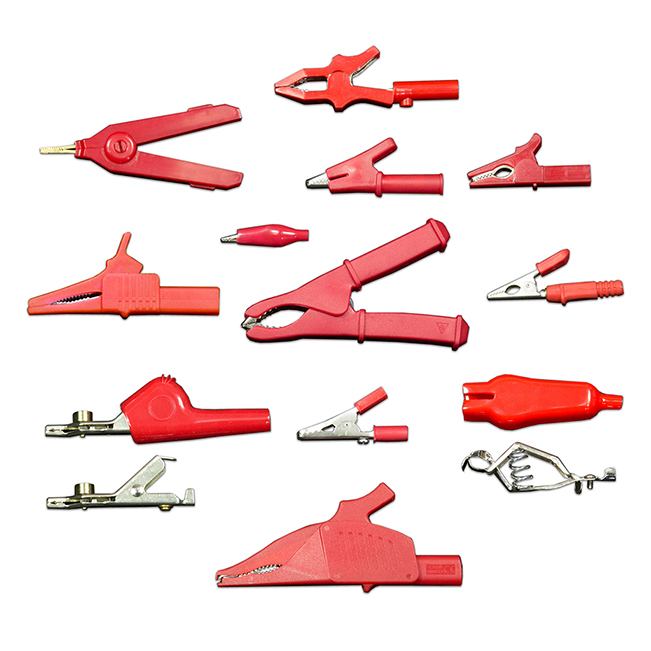

PTL909 Series Test Clips

Products Details

PTL909 SERIES TEST CLIPS

Quick Link for PTL909 Series Test Clips

PTL909-1 SERIES	PTL909-2 SERIES	PTL909-3 SERIES	PTL909-4 SERIES

PTL909-5 SERIES	PTL909-6 SERIES	PTL909-7 SERIES	PTL909-8 SERIES

PTL909-9 SERIES	PTL909-10 SERIES	PTL909-11 SERIES	PTL909-12 SERIES

PTL909-1 SERIES [BACK TO TOP]
Model No. PTL909-1-a		Model No. PTL909-1-b
Rated voltage / Current 30VAC,60VDC / 3A		Rated voltage / Current 30VAC,60VDC / 5A
Contact / Insulat Iron,Ni / PVC		Contact / Insulat Iron,Ni / PVC
Clip open: 7.5mm		Clip open: 10mm
Approval: CE, RoHS		Approval: CE, RoHS
Color:		Color:
Model No. PTL909-1-c
Rated voltage / Current 30VAC,60VDC / 8A
Contact / Insulat Iron,Ni / PVC
Clip open: 10mm
Approval: CE, RoHS
Color:
PTL909-2 SERIES [BACK TO TOP]
Model No. PTL909-2-a		Model No. PTL909-2-b
Rated voltage / Current 30VAC,60VDC / 3A		Rated voltage / Current 30VAC,60VDC / 5A
Contact / Insulat Iron,Ni / PVC		Contact / Insulat Iron,Ni / PVC
Clip open: 10mm		Clip open: 14mm
Approval: CE, RoHS		Approval: CE, RoHS
Color:		Color:
Model No. PTL909-2-c
Rated voltage / Current 30VAC,60VDC / 8A
Contact / Insulat Iron,Ni / PVC
Clip open: 19mm
Approval: CE, RoHS
Color:
PTL909-3 SERIES [BACK TO TOP]
Model No. PTL909-3-a
Rated voltage / Current 30VAC,60VDC / 10A
Contact / Insulat Brass,Ni / PVC
Clip open: 12.5mm
Approval: CE, RoHS
Color:
PTL909-4 SERIES [BACK TO TOP]
Model No. PTL909-4-a		Model No. PTL909-4-b
Rated voltage / Current 30VAC,60VDC / 8A		Rated voltage / Current 30VAC,60VDC / 8A
Contact / Insulat Brass,Ni / PVC		Contact / Insulat Brass,Ni / PVC
Clip open: 10mm		Clip open: 12.5mm
Approval: CE, RoHS		Approval: CE, RoHS
Color:		Color:
Model No. PTL909-4-c
Rated voltage / Current 30VAC,60VDC / 10A
Contact / Insulat Brass,Ni / PVC
Clip open: 23mm
Approval: CE, RoHS
Color:
PTL909-5 SERIES [BACK TO TOP]
Model No. PTL909-5-a		Model No. PTL909-5-b
Rated voltage / Current 30VAC,60VDC / 8A		Rated voltage / Current 30VAC,60VDC / 10A
Contact / Insulat Brass,Ni / PVC		Contact / Insulat Brass,Ni / PVC
Clip open: 10mm		Clip open: 13mm
Approval: CE, RoHS		Approval: CE, RoHS
Color:		Color:
Model No. PTL909-5-c
Rated voltage / Current 30VAC,60VDC / 15A
Contact / Insulat Brass,Ni / PVC
Clip open: 20mm
Approval: CE, RoHS
Color:
PTL909-6 SERIES [BACK TO TOP]
Model No. PTL909-6-a		Model No. PTL909-6-b
Rated voltage / Current 30VAC,60VDC / 8A		Rated voltage / Current 30VAC,60VDC / 10A
Contact / Insulat Brass,Ni / PVC		Contact / Insulat Brass,Ni / PVC
Clip open: 10mm		Clip open: 16.5mm
Approval: CE, RoHS		Approval: CE, RoHS
Color:		Color:
Model No. PTL909-6-c
Rated voltage / Current 30VAC,60VDC / 15A
Contact / Insulat Brass,Ni / PVC
Clip open: 25mm
Approval: CE, RoHS
Color:
PTL909-7 SERIES [BACK TO TOP]
Model No. PTL909-7-a		Model No. PTL909-7-b
Rated voltage / Current 30VAC,60VDC / 15A		Rated voltage / Current 30VAC,60VDC / 10A
Contact / Insulat Brass,Ni / ABS		Contact / Insulat Brass,Ni / PABS
Clip open: 17mm		Clip open: 9mm
Approval: CE, RoHS		Approval: CE, RoHS
Color:		Color:
PTL909-8 SERIES [BACK TO TOP]
Model No. PTL909-8-a		Model No. PTL909-8-b
Rated voltage / Current CATII 300V / 15A		Rated voltage / Current CATII 600V / 20A
Contact / Insulat Brass,Ni / PVC		Contact / Insulat Brass,Ni / PVC
Clip open: 30mm		Clip open: 23mm
Approval: CE, RoHS		Approval: CE, RoHS
Color:		Color:
Model No. PTL909-8-c
Rated voltage / Current CATII 600V / 20A
Contact / Insulat Brass,Ni / PVC
Clip open: 22mm
Approval: CE, RoHS
Color:
PTL909-9 SERIES [BACK TO TOP]
Model No. PTL909-9-a		Model No. PTL909-9-b
Rated voltage / Current CATII 300V / 15A		Rated voltage / Current CATII 600V / 20A
Contact / Insulat Brass,Ni / ABS		Contact / Insulat Brass,Ni / ABS
Clip open: 14mm		Clip open: 27mm
Approval: CE, RoHS		Approval: CE, RoHS
Color:		Color:
Model No. PTL909-9-c		Model No. PTL909-9-d
Rated voltage / Current 30VAC,60VDC / 10A		Rated voltage / Current CATII 300V / 15A
Contact / Insulat Brass,Ni / PA		Contact / Insulat Brass,Ni / PA
Clip open: 6.5mm		Clip open: 14mm
Approval: CE, RoHS		Approval: CE, RoHS
Color:		Color:
Model No. PTL909-9-e		Model No. PTL909-9-f
Rated voltage / Current CATIII 1000V / 32A		Rated voltage / Current CATIII 1000V / 20A
Contact / Insulat Brass,Ni / PA		Contact / Insulat Stainless steel / PA
Clip open: 28mm		Clip open: 33mm
Approval: CE, RoHS		Approval: CE, RoHS
Color:		Color:
Model No. PTL909-9-g
Rated voltage / Current CATIII 1000V / 32A
Contact / Insulat Brass,Ni / PA
Clip open: 37mm
Approval: CE, RoHS
Color:
PTL909-10 SERIES [BACK TO TOP]
Model No. PTL909-10-a		Model No. PTL909-10-b
Rated voltage / Current 30VAC,60VDC / 10A		Rated voltage / Current 30VAC,60VDC / 10A
Contact / Insulat Brass,Ni / ABS		Contact / Insulat Brass,Ni / ABS
Clip open: 8mm		Clip open: 27mm
Approval: CE, RoHS		Approval: CE, RoHS
Color:		Color:
Model No. PTL909-10-c
Rated voltage / Current 30VAC,60VDC / 10A
Contact / Insulat Brass,Ni / ABS
Clip open: 15mm
Approval: CE, RoHS
Color:
PTL909-11 SERIES [BACK TO TOP]
Model No. PTL909-11-a		Model No. PTL909-11-b
Rated voltage / Current 30VAC,60VDC / 8A		Rated voltage / Current 30VAC,60VDC / 10A
Contact / Insulat Iron,Ni / PVC		Contact / Insulat Iron,Ni / PVC
Clip open: 11mm		Clip open: 13mm
Approval: CE, RoHS		Approval: CE, RoHS
Color:		Color:
Model No. PTL909-11-c		Model No. PTL909-11-d
Rated voltage / Current 30VAC,60VDC / 15A		Rated voltage / Current 30VAC,60VDC / 15A
Contact / Insulat Iron,Ni / PVC		Contact / Insulat Iron,Ni / PVC
Clip open: 16mm		Clip open: 13mm
Approval: CE, RoHS		Approval: CE, RoHS
Color:		Color:
Model No. PTL909-11-e		Model No. PTL909-11-f
Rated voltage / Current 30VAC,60VDC / 20A		Rated voltage / Current 30VAC,60VDC / 25A
Contact / Insulat Iron,Ni / PVC		Contact / Insulat Iron,Ni / PVC
Clip open: 17mm		Clip open: 25mm
Approval: CE, RoHS		Approval: CE, RoHS
Color:		Color:
PTL909-12 SERIES [BACK TO TOP]
Model No. PTL909-12-a
Rated voltage / Current 30VAC,60VDC / 10A
Contact / Insulat Iron,Ni / PVC
Clip open: 25mm
Approval: CE, RoHS
Color:
