M10-AD330M

AC & DC POWR SUPPLY

Features

. Both AC and DC output (full-wave rectification)

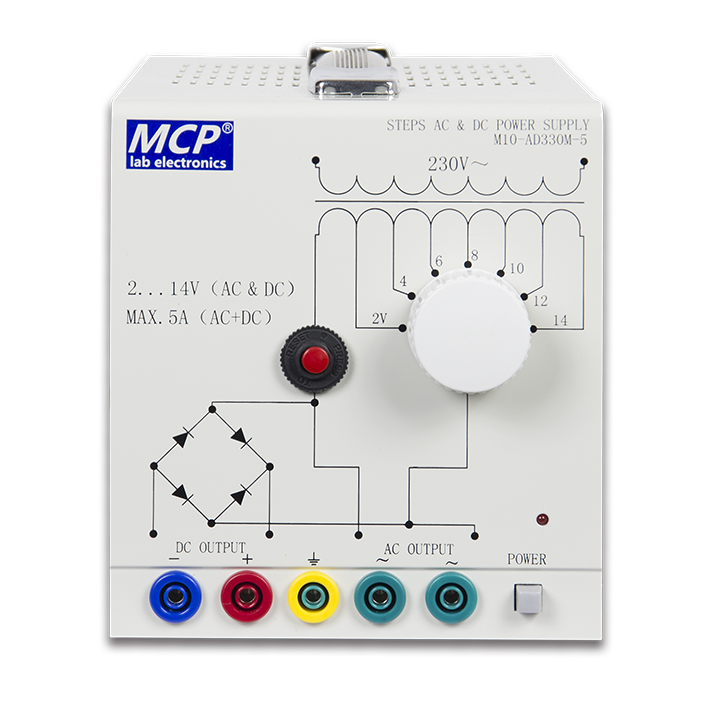

. Working diagram on panel for easy operation

. Output 2~14V in 7 steps

. Over current protection

. Transformer thermal protection

Specifications

.Output voltage:   2V, 4V, 6V, 8V, 10V, 12V, 14V

.Output accuracy:   10%

.Input voltage:   220~240VAC ±10%,50Hz or 110~127VAC ±10%,60Hz

.Dimensions (W x H x D):   132 x 160 x 260mm

.Weight:   3.5kg
