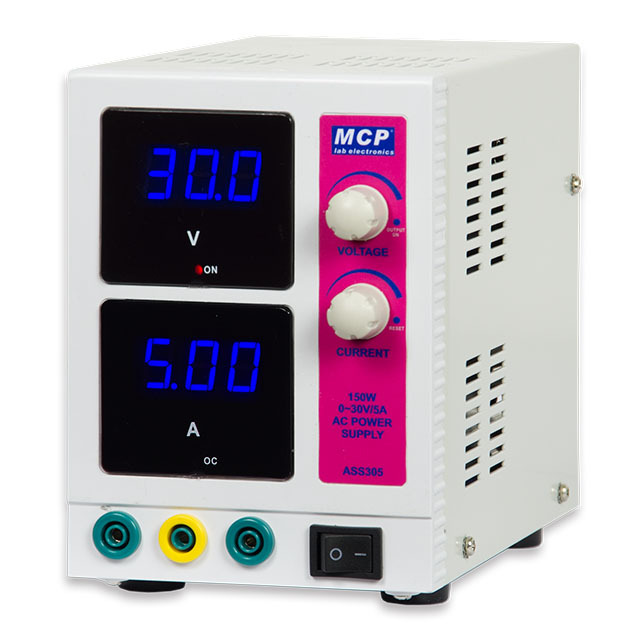

M10-ASS305
SWITCHING POWER SUPPLY

Features

. AC power supply sin wave output

. Amplitude continuously adjustable

. Output frequency switchable and line tracing.

. Max.output voltage 30V,current 5A

. Max.output power 150W

. Light and compact construction

Specifications

Output Voltage: 1.5~30VAC RMS

Output Current: Max. 5A

Voltage resolution: 0.1V

Current resolution: 10mA

Output Frequency: 50Hz, 60Hz (switchable or line tracing)

Output Accuracy: Frequency: 1%

Display Accuracy: Voltmeter ± (1%Rdg+2digits), Ammeter ± (1%Rdg+2digits)

Input Voltage: 100~127VAC or 220~240VAC, 50Hz/60Hz

Dimensions: 105(W)×160(H)×215(D)mm

Weight: 2.2kg
