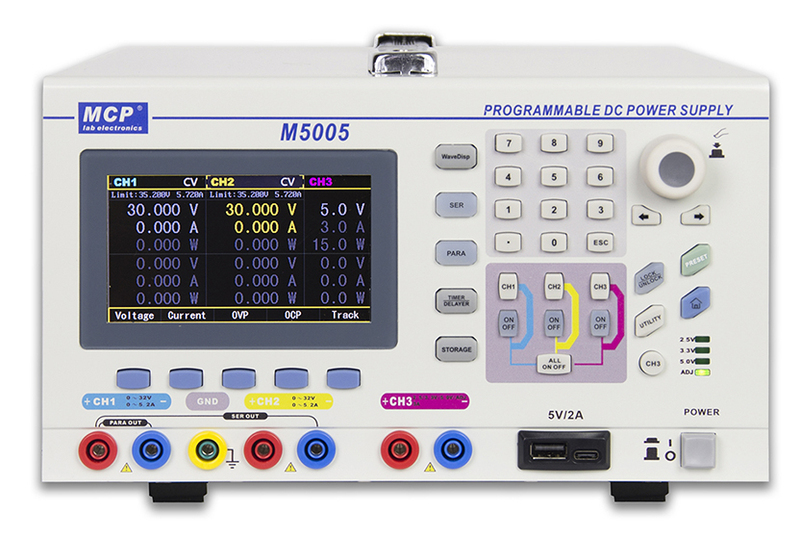

M5000 SERIES
PROGRAMMABLE DC POWER SUPPLY
Features
. 4.3' TFT color display, WVGA (480*272)
. Graphical user menu
. CH1 and CH2 0~30V/0~5A, CH3 0~9V/3A.
. Fixed voltage output 2.5V, 3.3V, 5V/3A
. Type A and type C USB output 5V/2A.
. High output resolution 1mV/1mA
. Low ripple noise.
. Over voltage,over vurrent and over heat protection
| Technical Data | M5003 | M5005 | ||
| Output | Voltage | CH1&CH2: 0～30V | CH1&CH2: 0～30V | |
CH3: 2.5V/3.3V/5V/ 0～9V | CH3: 2.5V/3.3V/5V/ 0～9V | |||
| Current | CH1&CH2: 0~3A×2 | CH1&CH2: 0~5A×2 | ||
| CH3: 0~3A | CH3: 0~3A | |||
| CV mode | Regulation | source | ≤0.01%+2mV | |
| load | ≤0.01%+2mV | |||
| Ripple & noise | ≤1.0mVrms/350μVrms (5Hz~1MHz) | |||
| Response time | ≤50μs(50% lord change & min. load 0.5A) | |||
Order processing time | <100ms | |||
| Output range | 0 to set voltage continuously adjustable | |||
| CC mode | Regulation | source | ≤0.01%+250μA | |
| load | ≤0.01%+250μA | |||
| Ripple & noise | ≤2mArms | |||
| Output range | 0 to set voltage continuously adjustable | |||
| Trace mode | Parallel | source regulation | ≤0.01%+2mV | |
| load regulation | ≤0.01%+2mV | |||
| Series | source regulation | ≤0.01%+3mV | ||
| load regulation | ≤300mV | |||
| Tracking error | ≤0.5%+100mV(with load +300mV) | |||
| Measurement | Display | voltage full range | 5 digits | |
current full range | 4 digits | |||
| Programming resolution | voltage | 1mV | ||
| current | 1mA | |||
Read back resolution | voltage | 0.1mV | ||
| current | 0.1mA | |||
| Display resolution | voltage | 1mV | ||
| current | 1mA | |||
| Programming accuracy (25±5℃) | voltage | ±(0.05%+10mV) | ||
| current | ±(0.2%+10mA) | |||
| Reading accuracy (25±5℃) | voltage | ±(0.05%+5mV) | ||
| current | ±(0.15%+5mA) | |||
| Voltage programming time | CH1 | UP: FL＜50ms,NL＜30ms DOWN: FL＜45ms,NL＜400ms | ||
| CH2 | UP: FL＜50ms,NL＜30ms DOWN: FL＜45ms,NL＜400ms | |||
| CH3 | UP: FL＜15ms,NL＜13ms DOWN: FL＜20ms,NL＜100ms | |||
Temperature coefficient per ℃ | CH1 | voltage full range | 0.01%+5mV | |
current full range | 0.01%+2mA | |||
| CH2 | voltage | 0.01%+5mV | ||
| current | 0.01%+2mA | |||
| CH3 | voltage | 0.01%+2mV | ||
| current | 0.01%+2mA | |||
| Channel 3 | output voltage | 2.5V/3.3V/5V/0~9V ±8% | ||
| output current | 0~3A | |||
| Regulation | source | ≤0.01%+3mV | ||
| load | ≤0.01%+3mV | |||
| Ripple & noise | ≤1.0mVrms (5Hz~1MHz) | |||
| Interface | USB Host & Device | |||
| Power Source | AC 100V~240V，50Hz /60Hz | |||
| Weight | 8kg | 9.5kg | ||
| Dimension (W×H×D) | 260mm×270mm×300mm | |||
