JL SEIRES
ELECTRIC METER
Features
.Compact size
.Easy operation and stable work
.Safety sockets and high reliability
.Novel design and various types for you
|
|

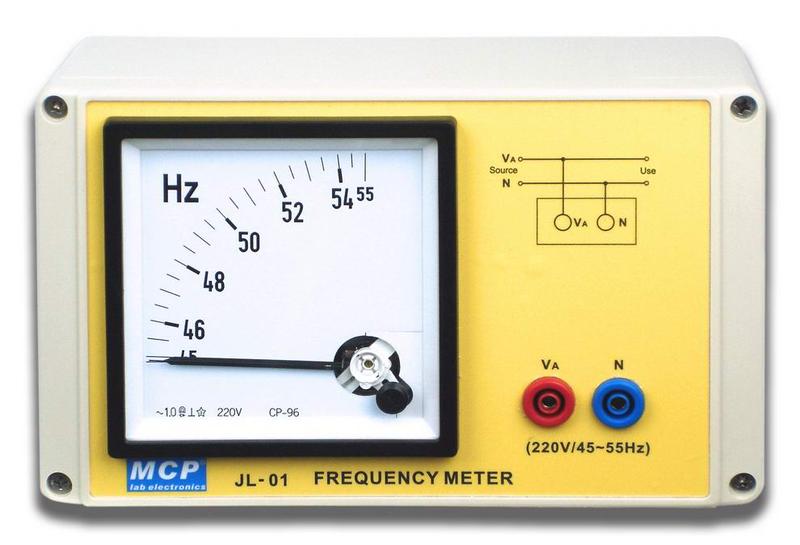

| Technical data | JL-01 | JL-02 | |
| Function | Frequency meter | Frequency meter | |
| Type | Analog | Reed | |
| Range | 45~55Hz (220V AC) | 45~55Hz (220V AC) | |
| 55~65Hz (220V AC) | |||
| Accuracy | 1.0% | 1.0% | |
JL-03 |
JL-04 |
| Technical data | JL-03 | JL-04 | |
| Function | Wattmeter | Wattmeter | |
| Type | Single phase | Three phase | |
| Range | 0~1kW(L-N 220V/5A) | 0~4kW(L-L 380V/5A) | |
| Accuracy | 1.5% | 1.5% | |
|
|

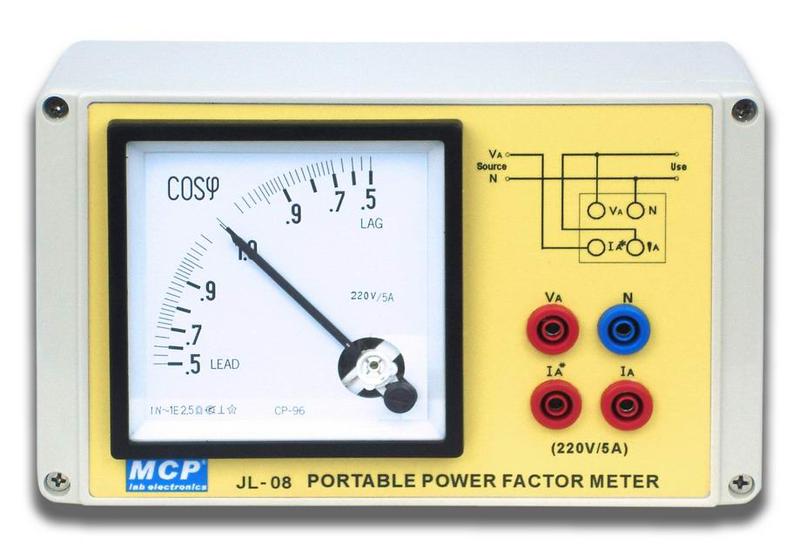

| Technical data | JL-05 | JL-08 | |
| Function | Power factor meter | Power factor meter | |
| Type | Three phase | Single phase | |
| Range | 0.5~1~0.5 (380V/10A) | 0.5~1~0.5 (220V/5A) | |
| Accuracy | 2.5% | 2.5% | |
|
|
| Technical data | JL-06 | JL-07 | |
| Function | AC ammeter | AC voltmeter | |
| Range | 0~5A | 0~500V | |
| Accuracy | 1.5% | 1.5% | |
