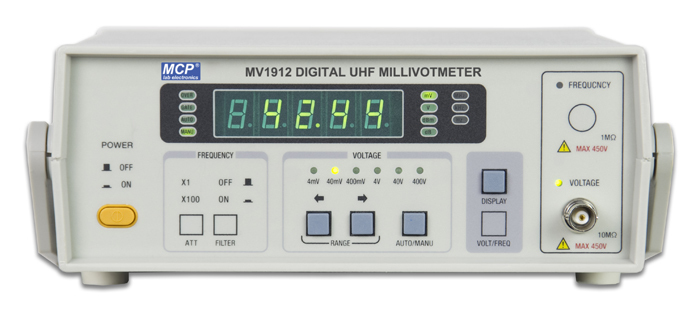

MV1912/MV1913
MILLVOLT METER
Features
.Wide measure frequency and voltage
.Multi parameter display
.Standard RS232 interface
| MV1912 | MV1913 | ||||
| Input channels | 1 | 2 | |||
| Frequency range | 5Hz~3MHz | ||||
| Voltage range | 100uVrms~400Vrms 6steps | ||||
| dB test range | -80dB~52.4dB(0dB=1Vrms) | ||||
| dBm test range | -77dBm~54.25dBm(0dBm=1mW,600Ω) | ||||
| Counter (Mv1913 only) | Frequency range | N/A | 5Hz~3MHz | ||
| Voltage range | 10mV~400Vrms | ||||
| Attenuator | 1/100 | ||||
| LPF | 100kHz,30dB | ||||
| Gate | 100mS | ||||
| Display | 5 digits | ||||
| Time base | 5 x 10-5 | ||||
| Measurement accuracy | 100Hz~100kHz ±2%,±8digits, 50Hz~500kHz ±3%,±10digits, 10Hz~2MHz ±4%,±15digits, 5Hz~3MHz±6%,±20digits | ||||
| Input resistance | 10MΩ | ||||
| Input capacitance | ±30pF | ||||
| Interface | RS232 | ||||
| Dimensions(W×H×D) | 210×80×230mm | ||||
| Weight | 2kg | ||||
