TB150 SERIES
MULTI-PURPOSE WORKSTATION

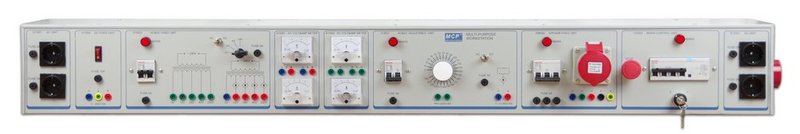

This multi-purpose workstation is worked with TB-1000 series training bench. With the various combination of the control units, you can make a customized workstation that meet your requirement. Our control units can also be customized.


TB150 MAINS CONTROL UNITS

ModelPhaseBlock(s)
11100111
11100211
13200132
13200232



(1):Indicator of On/Off
(2):Single-phase electronic magnetic break switch (400V, 10A) and leakage protection switch (30mA)
(3):Three-phase electronic magnetic break switch (690V, 50A) and leakage protection switch (30mA)
(4):Emergency switch with On/Off key (660V,10A)
(5):Emergency switch (660V,10A)

(6):On/Off key (660V,10A)



TB150 AC POWER SUPPLY UNITS

ModelAC outputPhaseBlock(s)
2120010~250V/4A12
21200212V/24V/40V/250V/4A12
2340010~250V/4A X 3 phase34
2320020~230V/4A X 3 phase32



(1):Indicator of On/Off
(2):Single-phase electronic magnetic break switch (400V, 10A)
(3):Three-phase electronic magnetic break switch (690V, 50A)
(4):Output fuse protection
(5):Three-phase output socket
(6):Voltage adjusting knob
(7):Output safety sockets





TB150 AC & DC POWER SUPPLY UNITS

ModelAC outputDC outputBlock(s)
3130010~250V/4A0~250V/4A(rectified DC)3
312002N/A0~30V/0~5A(regulated DC)2
31300312V/24V/40V/250V/4A12V/24V/40V/250V/4A(rectified DC)3
311004N/A24V/10A(switching power supply)1
3340050~250V/4A X 3 phase0~250V/4A(three phase rectified, 4% small ripple)4



(1):Indicator of On/Off
(2):Single-phase electronic magnetic break switch (400V, 10A)
(3):Three-phase electronic magnetic break switch (690V, 50A)
(4):Output fuse protection
(5):AC/DC output change switch
(6):Current meter and voltage meter
(7):On/Off switch with LED indicator
(8):Voltage adjusting knob
(9):Output safety sockets

TB150 METERS & SOCKETS UNITS

ModelclassBlock(s)
4110012.51
4110022.51
4110031.51
4110041.51
4110051.51
4110061.51
511001N/A1







511001 supported power sockets:
