F3 Sreries

DEMONSTRATION TRANSPARENT COMPONENTS

Feature
. Light and magnetic fixture
. Visible components
. 4mm safety socket connection
. Customization allows
. Dimensions100x68x48mm

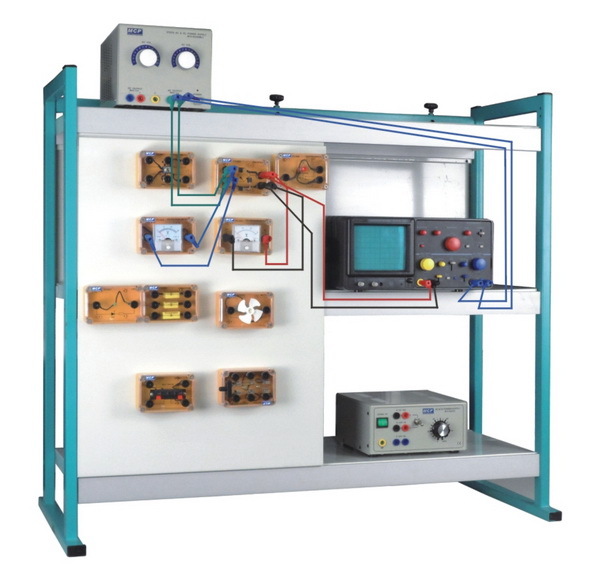

* TBF-100 multi function demonstraton frame is not included.

Basic units
F3-001 Resistor 4.7Ω,12Ω,39Ω,2W		F3-017 Potentiometer 1KΩ,0.5W
F3-002 Capacitor 470pF,4700pF 47000pF,63V		F3-018 Diode 1N4004
F3-003 Capacitor 0.5uF,1uF,2uF,400V		F3-019 Transistor 2SC1008
F3-004 Capacitor 220uF,470uF 2200uF,25V		F3-020 Thyristor 97A6
F3-005 Inductor 1mH,10mH 100mH,100mA		F3-021 LED 97A6
F3-006 Push switch 1x2,120V,5A		F3-022 Rectifier 400V,10A
F3-007 Toggle switch 2x2,120V,5A		F3-023 Transformer 220V,6V-0-6V,1A
F3-008 Fuse 6x20,250V,3A		F3-024 Toggle switch 2 X 2
F3-009 Crocodile clip 24V,3A		F3-025 Toggle switch 1 X 2
F3-010 Spring clip 24V,3A		F3-026 DC current meter 0~5A Accuracy 2.5%
F3-011 E10 bulb base 6V		F3-027 DC voltage meter 0~30V Accuracy 2.5%
F3-012 B10 bulb base 6V		F3-028 AC current meter 0~5A Accuracy 2.5%
F3-013 B15 bulb base 24V		F3-029 AC voltage meter 0~30V Accuracy 2.5%
F3-014 DC Motor 3V,200mA		F3-160 Operational amplifier Amplifier TL081
F3-015 Buzzer 3~7V		F3-161 Amplifier modulation A/D conventor AD633
F3-016    Speaker    8Ω,0.3W		F3-162    Detector    The circuit for       demodulation
F3-077 Solar panel Output: 3V 150mA		F3-1505 DC motor & generator demo system
