LCR Matrix Box

Feature
.New design and convenience operation
.High accuracy to 1% (RM-7) & 5%
.Plastic cabinet for better insulation


RM-7 RESISTOR MATRIX

Range: 0~11.111MΩ (1Ω steps) with seven decades
Accuracy: 1%
Wattage: 0.5W
Internal stray resistor: 0.3Ω
Dimensions: 190×140×80 mm

Weight: 400g

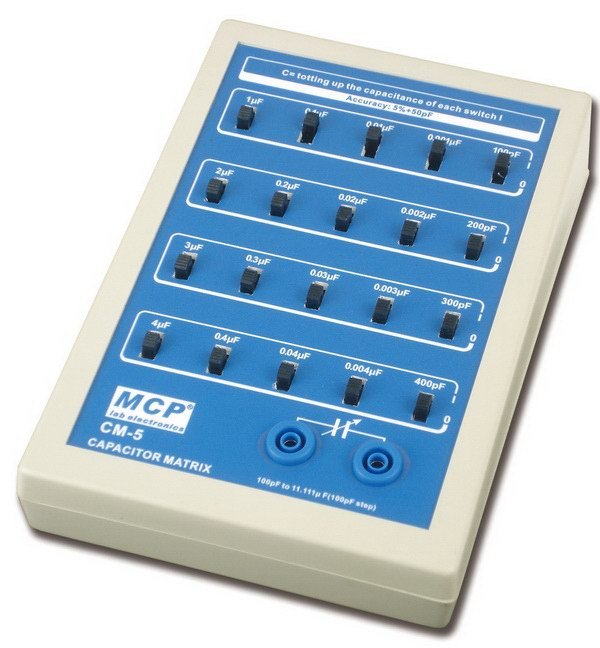

CM-5 CAPACITOR MATRIX

Range: 0~11.111μF (100pF steps) with five decades
Accuracy: 5%
voltage limit: 50VDC (non-polarized capacitor)
Internal residual capacitor: 50pF
Dimensions: 190×140×80 mm
Weight: 350g


IM-4 INDUCTOR MATRIX

Range: 0~111.1mH (10μH steps) with four decades
Accuracy: 5%
Current limit: 100mA
Internal stray inductor: 0.6μH
Dimensions: 190×140×80 mm
Weight: 450g
