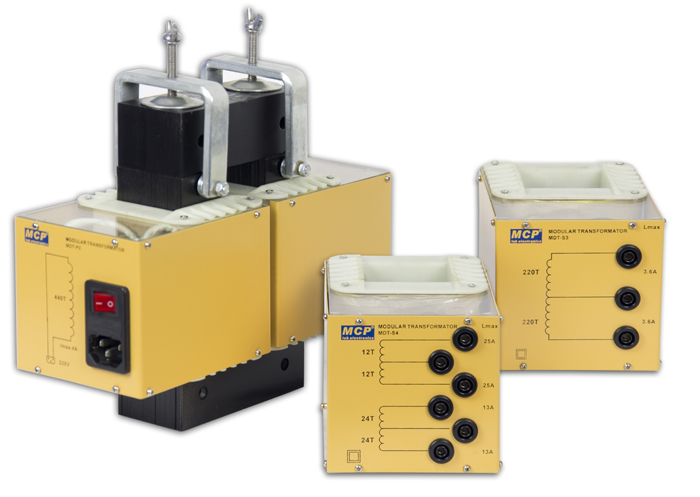

SAFETY MODULAR TRANSFORMER
Feature
Both primary coil and secondary coil has safety cover Primary circuit has standard power socket, fuse and switch Secondary circuit has 4 mm safety socket and double isolation
| UNITS |
| PRIMARY COIL MDT-P1 .220V power supply .440T, Max.I 4A .Power socket, switch, fuse .Dimension: 110x90x100mm .Weight: 0.85kg |
| PRIMARY COIL MDT-P2 .110V power supply .220T, Max.I 8A .Power socket, switch, fuse .Dimension: 110x90x100mm .Weight: 0.85kg |
| SECONDARY COIL MDT-S1 .Consists of 5 windings in series .6T, 12T, 24T, 48T, 96T .Max.I 25A, 25A, 13A, 6.6A, 3.3A .4 mm safety socket output .Double isolation .Dimension: 110x90x100mm .Weight: 0.85kg |
| SECONDARY COIL MDT-S2 .Consists of 2 windings in series .1000T, 1000T, Max.I 0.8A .Warning: w/o load, the coil delivers 1000V .4 mm safety socket output .Double isolation .Dimension: 110x90x100mm .Weight: 0.85kg |
| SECONDARY COIL MDT-S3 .Consists of 2 windings in series .220T, 220T, Max.I 3.6A .Warning: w/o load, the coil delivers 220V .4 mm safety socket output .Double isolation .Dimension: 110x90x100mm .Weight: 0.85kg |
| SECONDARY COIL MDT-S4 .Consists of 2 separate coils and each coil has 2 symmetrically windings .12T, 12T, 24T, 24T .Max.I 25A, 13A .4 mm safety socket output .Double isolation .Dimension: 110x90x100mm .Weight: 0.85kg |
