SA2000 SERIES

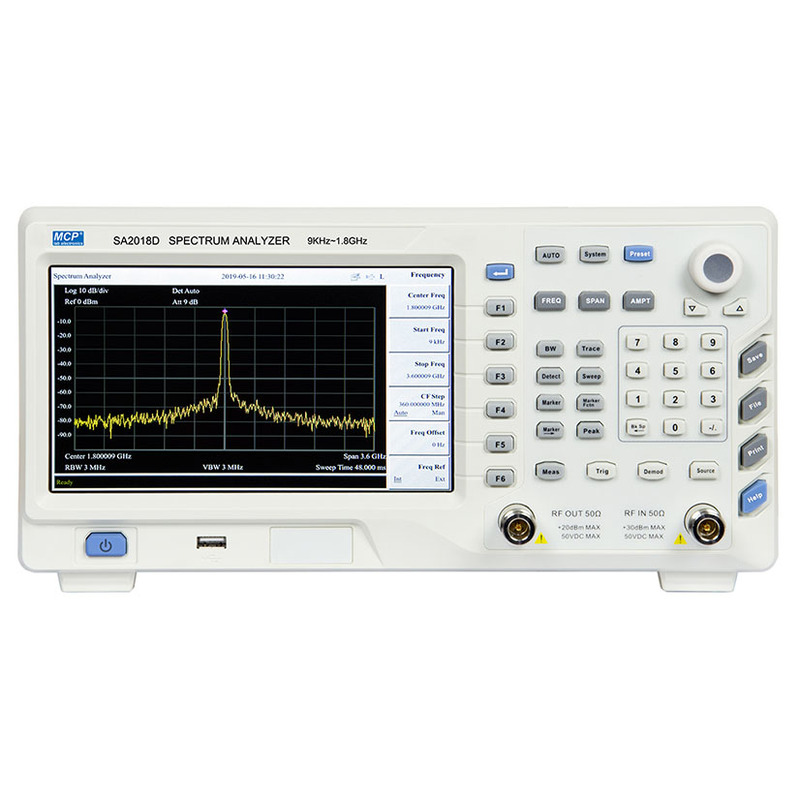

SPECTRUM ANALYZER
Feature
.Frequency range 9kHz~1.8GHz/3.0GHz
.Resolution bandwidth 1Hz~3MHz, sensitivity better than -158dBm
.Double source function, tracking/independence
.Acquisition of fast transient signals with application-specific transient detector
.Waterfall curve, modulation quality analysis, audio demodulation function
.Field strength, demodulation measure, S11 / S21 parameter and signal channel measure
.Pass-fail and others field test warning abilities
.8”color TFT-LCD display, multitracking operational measurement
| Technical data | SA2018/2018D | SA2030/2030D | |
| Frequency range | 9kHz~1.8GHz | 9kHz~3GHz | |
| Frequency resolution | 1Hz | ||
| Frequency readout accuracy | ±(frequency indication×frequendy accuracy+1%span+10%RBW+0.5×[span/(sweep dot-1)]+1Hz) | ||
| Aging rate | ＜2ppm/year | ||
| Temperature drift | ＜1ppm, 15℃~35℃ | ||
| Bandwidth resolution | 10Hz~500kHz, 1MHz, 3MHz | ||
Resolution filter shape factor | ＜5:19 (typical value, RBW≤500kHz) | ||
| RBW accuracy | ＜5% (typical value) | ||
| Video bandwidth | 10Hz~3MHz, in 1-3-10 sequence | ||
| DANL (preamplifier off/on) | 100kHz~1MHz, ＜-100dBm-3x(f/100kHz)dB/＜-120dBm-3x(f/100kHz)dB | ||
| Phase noise | -90dBc/Hz (offset: 30kHz) | ||
| Sweep time range | 3ms~ 3000s (span≠0) | ||
| Sweep mode | continuous, single | ||
| Frequency counter resolution | 1Hz, 10Hz, 100Hz, 1kHz | ||
| Frequency counter accuracy | frequency indication×frequency reference accuracy+frequency counter resolution | ||
Amplitude accuracy | ±1.5dB (input signal 0dBm~-50dBm) | ||
| Amplitude | Display average noise level | +20dBm (SA2018/SA2018D) | |
Max. Input level | +23dBm (SA2018/SA2018D) +27dBm (SA2030/SA2030D) | ||
| Max. DC Input voltage | 50V | ||
| P1dB | +7dB | ||
| Spurious & residual response | IP3(>30MHz) | +13dB | |
| IP2 | +30dB | ||
| Input spurious | ＜-60dBm | ||
| Residual response | ＜-90dBm (SA2018/SA2018D) | ||
Tracking source (SA2018D/SA2030D) | Frequency range | 100kHz~1.8GHz (SA2018D) | |
| Output power | -30dBm~0dBm, 1dB step | ||
| Output flatness | ±3dB | ||
| Input & output | RF input | N female, 50Ω | |
USB | USB2.0 (H), USB2.0 (D) | ||
| LAN | 10/100 Base-T, RJ-45 | ||
| RS232 | 9 pin, D-SUB femail | ||
| Time base in/out | 10MHz, BNC female, input power 0dBm~10dBm, output power 0dBm±2dB | ||
| VGA | 800×460,60Hz, 15 pin, D-SUB female | ||
| Trigger input | BNC female, 5V TTL level (max.±10V,100mA) | ||
AM/FM demodulation | 3.5 jack female | ||
| Display screen | 8'' TFT-LCD | ||
| Power source | 100V~240V, 40Hz~60Hz, 20W | ||
| Dimensions(W×H×D) | 335×162×116 mm | ||
| Weight | 4kg | ||
