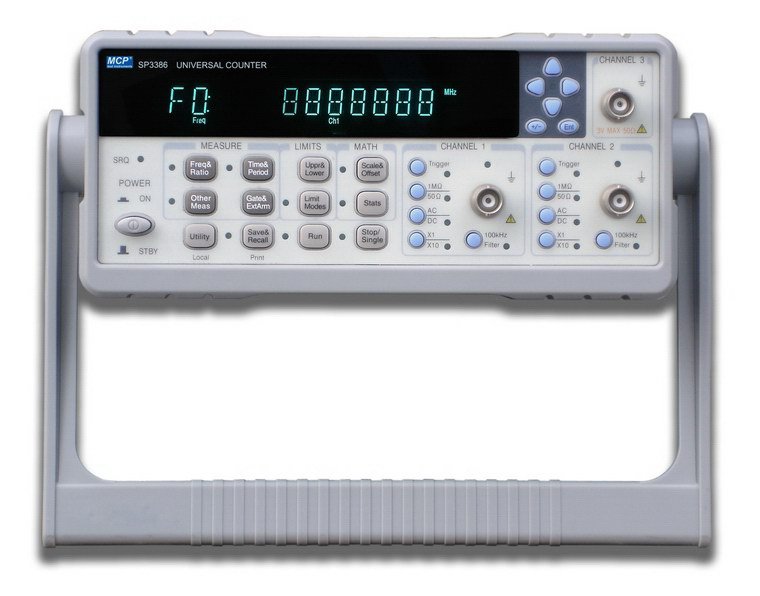

Multi-function counter
Featutres .High performance 150MHz clock, frequency resolution 9 digits/s, time interval resoulution 7ns
.Apply high performance AVR CPU, LSI and CPLD device, high reliability
.Channel C: 9GHz maximum
.Automatic limit testing for frequency measurement
.Math testing for fequency measurement
.Statistics(include mean, maximum, minimum, delta, rel, PPM, stand deviance, allan variance) for frequency measurement
.Save and store 9 different measurement state setups
.RS232C and Centronics printer interface
| SP3386 | ||
| Function | Measure frequency, time interval(average), period, frequency ratio, totalize, | |
| Measure frequency range | 0.1mHz~150MHz(Channel A&Channel B) | |
| Extend frequency | 100MHz~1.5GHz(Channel B for SP3386V) | |
| Channel C | 100MHz~500MHz(SP3386 I) | |
| 100MHz~1.5GHz(SP3386 II) | ||
| 100MHz~2.5GHz(SP3386 III) | ||
| 100MHz~3GHz(SP3386 IV) | ||
| 1.5GHz~9GHz(SP3386 V) | ||
| Input voltage | 30mVrms~1.5Vrms(100MHz below) | |
| 50mVrms~1.5Vrms(100MHz~1.5GHz) | ||
| 30mVrms~1VVrms(1.5GHz~9GHz) | ||
| Period range | 7ns~7000s | |
| Time interval range | 20ns~7000s | |
| Phase range | 0~360° | |
| PW range | ≥20ns, (cycle<100s) | |
| Duty cycle range | 1~99%, (cycle<100s) | |
| Measure accuracy | ±7x10-9/Gate time(s) | |
| Frequency resolution | 9 digits/Gate time(s) | |
| Couple mode | ChannelA, B: AC/DC | |
| Channel C:AC | ||
| Input impendance | 1MΩ/45pF or 50Ω | |
| Totalize capacity | 0~1x1012 | |
| Time base stability | ≤±1x10-8/d | |
| Power supply | 110~127VAC±10%/220~240VAC±10%, 50Hz±2Hz/60Hz±2Hz | |
| Dimensions(WxHxD) | 255x100x370mm | |
| Weight | 2kg | |
