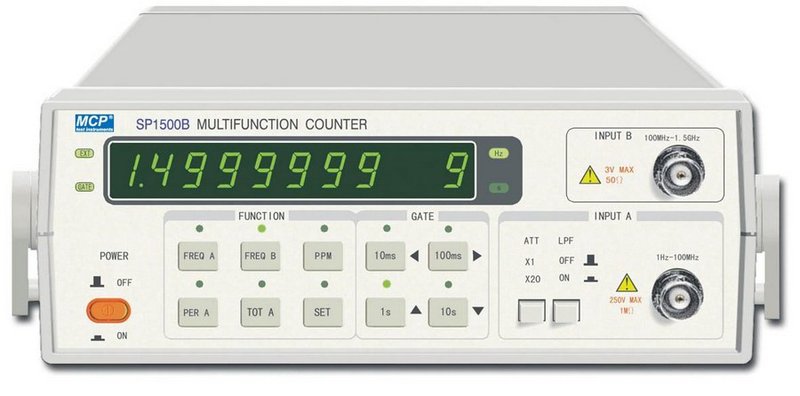

SP1500A/1500B/1500C/2500B/3000B/3000C
Multi-function Counter
Features
.Under the control of MCU
.Equal accuracy measure
.Measure speed: 20 times/s
.High performance, low price, high reliability
.Speical apply to crystal with PPM FM
.PPM measure F0 preset able
.Channal A has LP filiter and x20 attenuator function
.10 LED display (8 data, 2 eponent)
| SP1500A | SP1500B | SP1500C | SP2500B | SP3000B | SP3000C | |
Function | Measure frequency, period, totalize, self-calibrate, PPM | |||||
| Frequency range | 1Hz~1.5GHz | 0.005Hz~1.5GHz | 1Hz~2.5GHz | 1Hz~3.0GHz | 0.005Hz~3.0GHz | |
| Period range | 10ns~1s | |||||
| Totalize capacity | 108-1 | |||||
| Sensitivity | 40mVrms(1Hz~10Hz) | |||||
| 20mVrms(10Hz-10Hz/100MHz) | ||||||
| 30mVrms(100MHz~3GHz) | ||||||
| Input impedance | 1MΩ/40pF(Channel A) 50Ω(Channel B) | |||||
| Input voltage | 20mVrms~250Vp-p (Channel A) | |||||
| 30mVrms~1Vrms (Channel B) | ||||||
| Couple mode | AC | AC | AC/DC | AC | AC | AC/DC |
| Trigger level | 0V | -2.5V~+2.5V | ||||
| Measure error | ±Time Base accuracy±Trigger error x Measured frequency (or Period) ± LSD | |||||
| Time base stability | ±5x10-5/d | ±1x10-6/d | ||||
| Power source | 110~127VAC±10%/220~240VAC±10%, 50Hz±2Hz/60Hz±2Hz | |||||
Dimensions | 210x80x230mm | |||||
| Weight | 1.8kg | |||||
