DQ1000D SEIRES
DQ1000D SEIRES
- Products Details
DQ1000D SEIRES

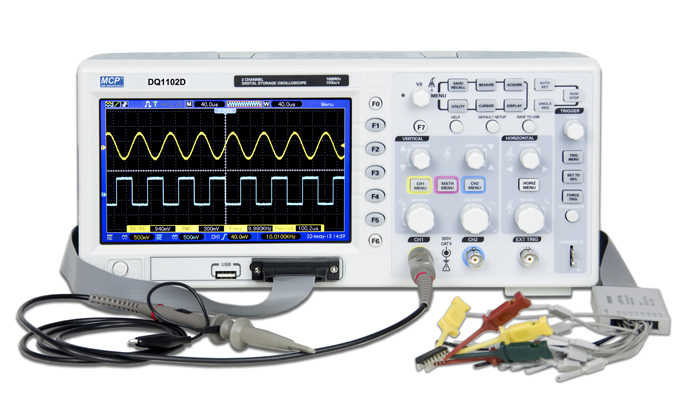

MIXED SIGNAL OSCILLOSCOPE
Features
.Support logic analyzer and oscilloscope
.1GSa/s sampling rate and 50GSa/s equivalent
sampling rate
.1024k recording length
.7″wide screen 64k color TFT display
.USB-host for save and update
| Technical Data | DQ1062D | DQ1102D | DQ1202D |
| Channels | 2 channels oscilloscope+ 16 channels logical analyser | ||
| Sampling rate | 1GSa/s | ||
| Equivalent sampling rate | 25GSa/s | ||
| Display | |||
| Type | 7″wide screen 64k color TFT LCD | ||
| Display contrast | Adjustable (16 gears) with the progress bar | ||
| Display resolution | 800 horizontal × 480 vertical pixels | ||
Vertical system | |||
| Sensitivity and accuracy | 2mV/div~5V/div | ||
| Vertical resolution | 8 bit | ||
| Width of band (-3dB) | DC (AC 10Hz) ~ 60MHz | DC (AC 10Hz) ~ 100MHz | DC (AC 10Hz) ~ 200MHz |
| Selectable analog bandwidth limit | 20MHz | ||
| Rise time | ≤5.8ns | ≤3.5ns | ≤1.8ns |
| DC gain Accuracy | ±4%(2mV/div~5mV/div) ±3%(10mV/div~5V/div) | ||
| DC measurement accuracy | ±(3%Rdg.+0.1div+1mV)(10mV/div~5V) ±(3%(Rdg.+vertical position)+0.2div+1%(vertical position) (2mV/div~200mV/div, +2mV; 200mV/div~5V/div, +50mV) | ||
Horizontal system | |||
| SEC/DIV range | 2ns~40s/div, at 2-4-8 increment | ||
| Waveform interpolation | Sin(x)/x | ||
| Recording length | 1024k | ||
| Sampling rate and delay time accuracy | ±50ppm (any time interval 1ms) | ||
| Delta time measurement accuracy | Single: ±(1 sampling time interval + 100ppm×Rdg. + 0.6ns) | ||
| Average values: ± (1 sampling time interval + 100ppm×Rdg. + 0.4ns) | |||
Trigger system | |||
| Mode | Auto, normal, single | ||
| Type | Edge, pulse, video, alternate | ||
| Hold off range | 100ns~10s | ||
Math | +, -, x, ÷ | ||
| FFT | |||
Acquire input | |||
| Input coupling | DC, GND, AC | ||
| Input impedance | 1MΩ ±2% 20pF±3pF | ||
| Probe attenuation | 1x, 10x, 100x, 1000x | ||
| Max. input voltage | 300V (DC+AC peak) | ||
| Measurement | |||
| Cursor | Voltage difference ( V) between cursors Time difference ( T) between cursors Reciprocal of T in Hz (1/ T) | ||
| Auto-measure | Vrms, Vavg, Vp-p, Vmax, Vmin, Vtop, Vhigh, Vlow, Vmid, Vamp; Period, Freq, Rise, Fall, +Width, -Width, +Duty, -Duty, Delay | ||
| I/O | |||
| Standard | USB(D), USB(H) | ||
| Options | LAN | ||
| Calibrator | |||
| Output voltage | 5V≥( 1MΩ load) | ||
| Output frequency | 1kHz | ||
| Logical analyzer | |||
| Input channel | D0~D15 | ||
| Max. input impedance | 200k (C=10P) | ||
| Max. sampling rate | 500MHz | ||
| Recording length | 512k | ||
| Max. input voltage | ±60V | ||
| Minimum voltage slew | 1.2Vpp | ||
| Logic threshold range | ±8V | ||
| Compatible input | TTL, CMOS, ECL | ||
| Cursors | Voltage difference (ΔV) between cursors Time difference (ΔT) between cursors Reciprocal of ΔT in Hz (1/ΔT) | ||
| Measurement | Period and Frequency | ||
| Record postion | RefA, RefB | ||
| Trigger mode | Edge | D0~D15 select slope (rising or falling edge) | |
| Pulse width | D0~D15 select pulse polarity (positive or negative pulse), trigger when (=, ≠, ＞, ＜), trigger pulse width | ||
| Code-type | D0~D15 select code-type (H, L, X) | ||
| Duration | D0~D15 select persist time and trigger when (data terminate, data start, and data delay) | ||
| Queue | D0~D15 select specific data index (0~3) and code-type (H, L, X) | ||
| Repeat | D0~D15 select code-type (H, L, X) and repeat times | ||
| Power source | 100~120VACrms (±10%), 45~440Hz; 30VA Max; CAT Ⅱ 120~240VACrms(±10%), 45~66Hz; 30VA Max; CAT Ⅱ | ||
| Dimensions (Wx Hx D) | 315×142×110mm | ||
| Weight | 2.1kg | ||
| Accessories | Operation manual, power cord, USB cable, probe×2, sofrware CD-ROM, logic analyzer probe | ||
